উৎপত্তি স্থল:
China
পরিচিতিমুলক নাম:
OLYMSPAN
সাক্ষ্যদান:
CE, ASME
মডেল নম্বার:
FGZSS

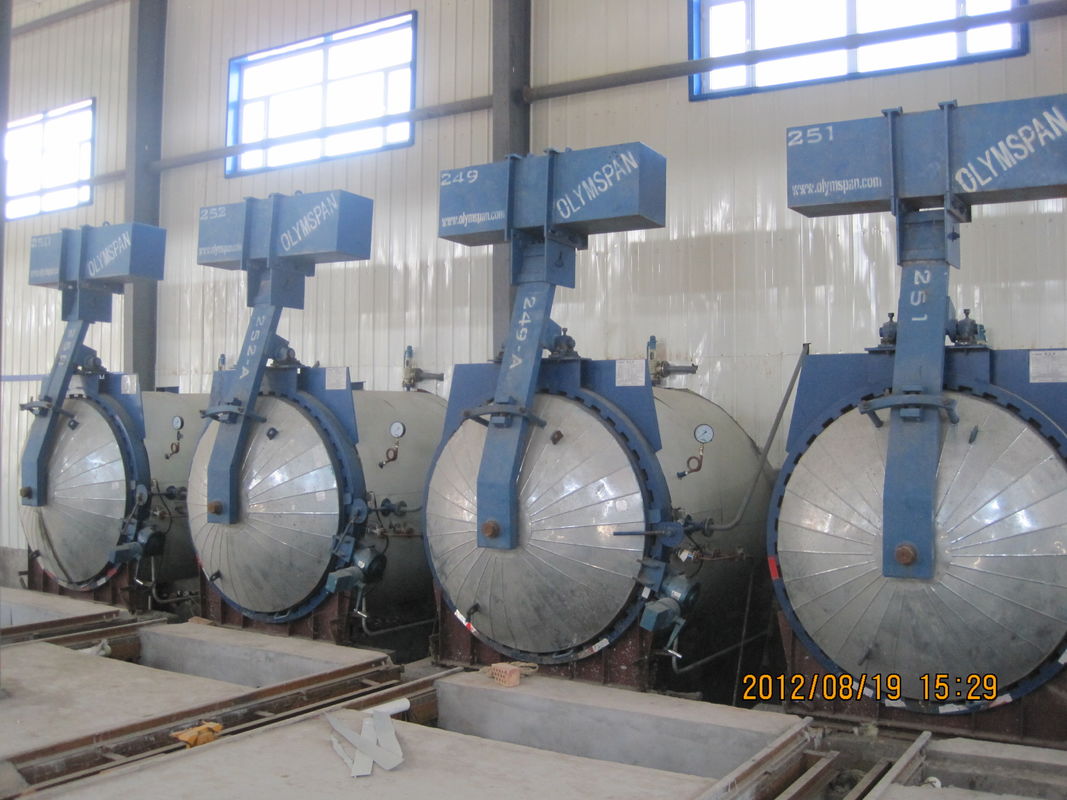

Food Rubber AAC Autoclave Pressure Vessel For Chemical / Textile / Wood
Type: AAC Autoclave
size : Φ2.68 * 38m
Automatic: Yes
Brick Raw Material: Fly ash, Sand, Cement, Gypsum, Lime and etc
application: wood, rubber, composite materials, aerospace, textile.
design pressure: 1.6Mpa
working pressure:1.5Mpa
design temperature:204
working temperature: 201
Description:
AAC autoclave is a kind of Class I or Class II pressure vessel.
We have strict standards for materials of pressure parts. For lid, we use 16MnR, and for plate, we use GB6654 plate.
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel.
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Specifications:
|
Item |
Type |
||||||
|
FGZSS 1.5-1.65*L |
FGZCS 1.5-2*L |
FGZSS 1.5-2.5*L |
FGZSS 1.5-2.68*L |
FGZSS 1.5-2.85*L |
FGZCS 1.5-3*L |
FGZCS 1.5-3.2*L |
|
|
Inner diameter |
Ø 1.6m |
Ø 2m |
Ø 2.5m |
Ø 2.68m |
Ø 2.85m |
Ø 3m |
Ø 3.2m |
|
Length |
L |
L |
L |
L |
L |
L |
L |
|
Designed pressure |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
|
Designed temperature |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
|
Max operation pressure |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
|
Max operation temperature |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
|
Medium |
Saturated steam |
||||||
|
Track gauge/height |
600mm/ 150mm |
600mm/ 150mm |
800mm/ 200mm |
800mm/ 250mm |
963mm/ 280mm |
1220mm/320mm |
1220mm/ 320mm |
|
Corrosion allowance |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
2mm |
Applications:
1. Glass industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Wood industry
6. aerospace industry
7. textile industry
8. composite materials
Competitive Advantage:
Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.
Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
